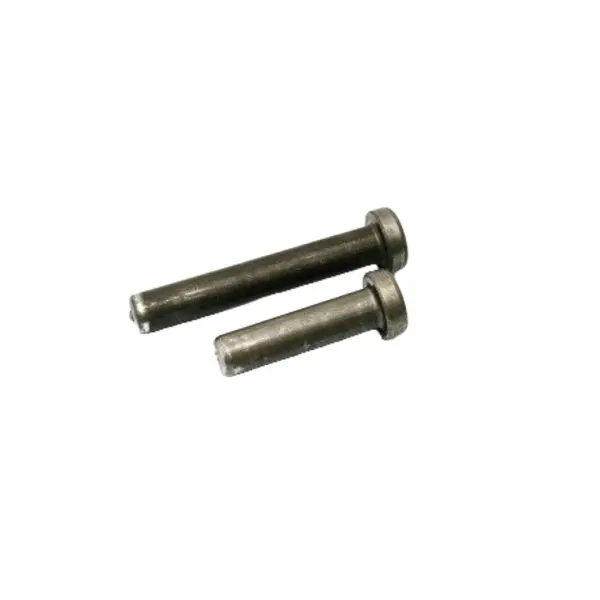

Shear Connector
S3L Shear connectors are typically used in composite steel construction for holding concrete slabs to steel members to resist shear forces and increase shear loading capacity in steel buildings, bridges, columns caissons, containment liners, etc. They also act as embedment anchors on embedded plates, frames, angles, strip plates, attachments and connections. Options for Welding through metal deck are available for 3/4 inch diameter and smaller.
